HR-RH High Shear Mixer/Emulsifier

HR-RH High Shear Mixer/Emulsifier

    • Condition: New
    • Product Type: Pesticide SC, OD,EC, EW; Printing ink ; Pigment; Cosmetic ; Food etc.
    • Brand Name: HongRu
    • Material: SS304/SS316L
    • Place of Origin:China (Mainland)
    • Voltage:can be customized

Leave Message Chat Online

Product Overview

With the cooperation of rotor and stator, the high shear mixer could perform shearing or emulsifying effect.

Characters

    • Main material: main shaft SS304/SS316L
    • High shear head material: SS304/SS316L for selection
    • Lifting mode: hydraulic lifting/pneumatic lifting
    • Application viscosity: 0-10000cps

Application

It can be widely used for the production of Pesticide SC, OD,EC, EW; Printing ink ; Pigment; Cosmetic ; Food etc.

Specification



Model Motor Power (KW) Speed (rpm) Hydraulic station (KW) Stroke (mm)
HR-RH 4 4 0-2880 0.75 700
HR-RH 7.5 7.5 0-2880 0.75 800
HR-RH 11 11 0-2880 1.1 800
HR-RH 15 15 0-2880 1.1 900
HR-RH 18.5 18.5 0-2880 1.1 900
HR-RH 22 22 0-1440 1.1 1100
HR-RH 30 30 0-1440 1.1 1100
HR-RH 37 37 0-1440 1.1 1100
HR-RH 45 45 0-1440 1.1 1200
HR-RH 55 55 0-1440 1.5 1200

Features

HongRu can customized the high shear mixer as per customer requirement to meet different production condition. Clamping mode, high shear head type, disc height, cover type, cover lifting type etc can all be customized.


high speed disperser high speed disperser high speed disperser

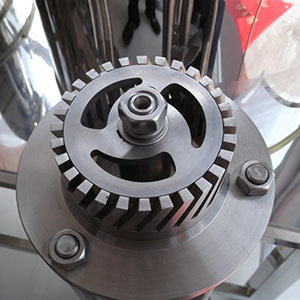

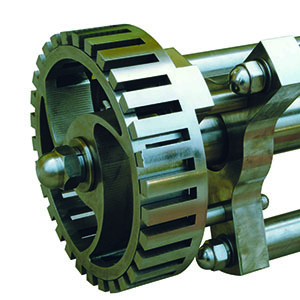

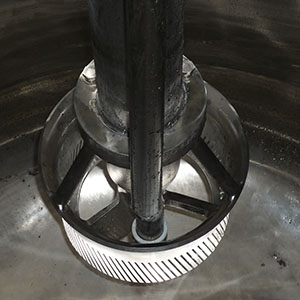

High Shear Head High Shear Head/Homogenizing Emulsifying/Homogenizing
